One of the Observable Indicators of Effort Needed for a Route is the Grade/Slope of the Land. G2K Jal-Sethu uses Standard Definitions of the Grade/Slope Along the Waterway to Indicate Local Nature of the Land. This Page Documents Such Definitions.

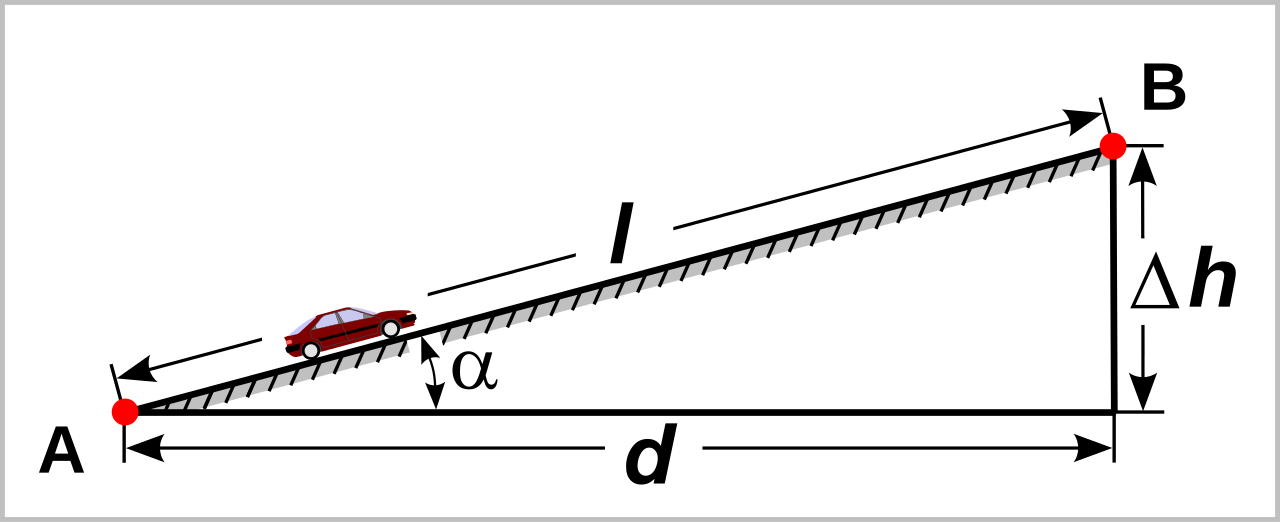

Δh = rise
l = slope length
α = angle of inclination
As the above picture shows, the arcsine (inverse of Sin(α))
of rise/slope-length will be the angle of inclination, α.
G2K Jal-Sethu uses angle of inclination to identify the Standard Definition of the Grade/Slope
as documented below.
| α From | α To | Grade Definition |
|---|---|---|
| Below -45° | -45° | Very Steep Down Slope |
| -45° | -35° | Steep Down Slope |
| -35° | -24° | Extreme Down Slope |
| -24° | -16.5° | Very Strong Down Slope |
| -16.5° | -8.5° | Strong Down Slope |
| -8.5° | -5° | Moderate Down Slope |
| -5° | -3° | Gentle Down Slope |
| -3° | -1.1° | Very Gentle Down Slope |
| -1.1° | -0.3° | Nearly Down Level |
| -0.3° | 0.3° | At Level |
| 0.3° | 1.1° | Nearly Level |
| 1.1° | 3° | Very Gentle Slope |
| 3° | 4.5° | Gentle Slope |
| 5° | 8.5° | Moderate Slope |
| 8.5° | 16.5° | Strong Slope |
| 16.5° | 24° | Very Strong Slope |
| 24° | 35° | Extreme Slope |
| 35° | 45° | Steep Slope |
| 45° | Above 45° | Very Steep Slope |
